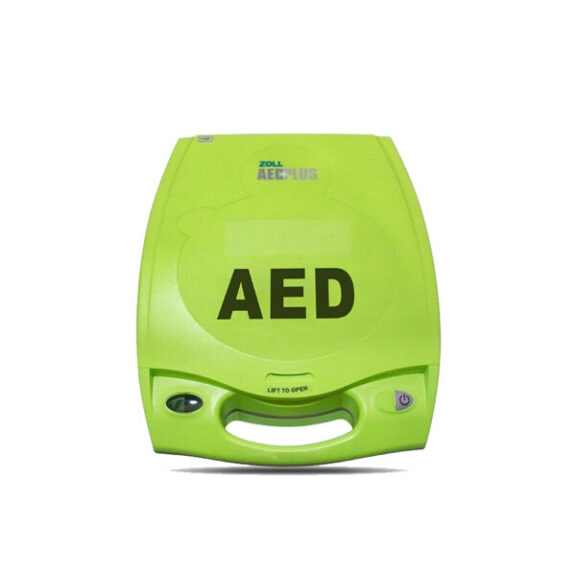

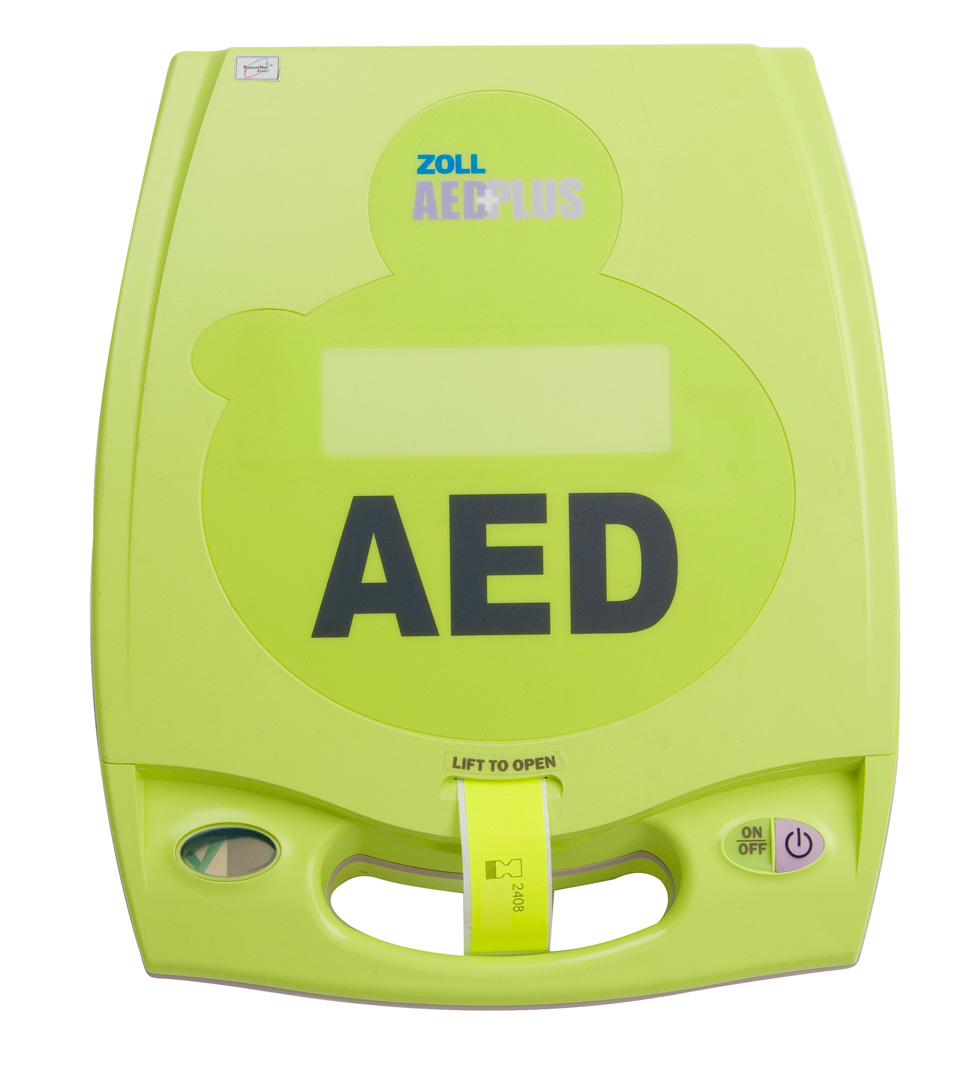

Zoll AED Plus Defibrillator with CPR Feedback, Full Package, Patient Ready!

The Zoll Medical AED Plus is the AED for the general public as well as EMS. First responders and bystanders can both assist in an emergency using the AED Plus with its voice, text, and picture prompts.

Real CPR Help® monitors chest compressions and provides feedback for your CPR. Are you not pressing down the recommended 2 inches? The AED Plus will tell you to push harder. Are you doing it correctly? The Zoll AED will encourage you as you go. While not all cardiac events require a shock, 100% will require CPR; wouldn’t you feel more confident with real-time instruction?
The Zoll medical team engineered this defibrillator to save time during a sudden cardiac event when seconds make the difference. It is the lowest ten-year cost of ownership on the market; therefore, it is also an economical choice for facilities.

Features

Real CPR Help:

Zoll’s highly-praised Real CPR Help feature gives a bystander real-time feedback on the efficacy of their chest compressions. As they administer life-saving CPR, they can have confidence that the rate of chest compressions is at the recommended 100-120 compressions per minute, and the depth is between 2 to 2.4 inches. Previously, they would have to guess whether they were administering CPR correctly.

Audio prompts and visual icons:

It is easy to forget your training when faced with a high-pressure situation. That is why the Zoll Plus AED walks the user through the process of life-saving CPR from beginning to end with clear audio and visual prompts. The icons correspond with the American Heart Association’s Chain of Survival, following a sequence of six critical actions that increase survival rates from sudden cardiac arrest (SCA) and other life-threatening emergencies,

Easy-to-place, one-piece electrodes:

Tangled wires are the last thing you need when saving a life, which is why Zoll’s CPR-D-padz® electrodes come in one piece and are pre-connected to the defibrillator. Simply pull them out of the Zoll Plus AED and then use the easy-to-follow images on the pads to place them quickly onto the victim. These pads boast the most extended shelf life of any defibrillator sold, with a 5-year shelf life.

Fully automatic feature is available:

The Zoll AED Plus package comes in both semi-automatic and fully automatic models. This unit carefully monitors the victim’s heart rate; whenever a shockable heart rhythm is detected, the unit will either notify the rescuer to press a button to deliver a shock (semi-automatic) or deliver a shock independently (automatic).

Protected from dust and water:

The Zoll Medical’s AED resists damage from solids and liquids with its rugged design. Zoll’s defibrillator received an impressive IP (ingress protection) rating of IP55 for dust and water.

Durable in harsh conditions:

Users often subject AEDs to rough handling and extreme conditions during an emergency. Zoll Medical’s AED can withstand extreme temperatures, altitude, vibration, and shock. It meets IEC 68-2-27; 100G for shock and military (MIL Standard 810F).

Off-the-shelf lithium batteries:

You should never need to worry about battery life when you are in an emergency. This unit takes Duracell 123a batteries that are easily found without going to the manufacturer and have an
impressive 5-year battery life.

Intelligent pediatric capability:

Easily convert your new or recertified AED Plus for pediatric use with the Pedi-padz® pediatric electrodes, which can be purchased separately for children up to 8 years old or weighing less than 55 pounds.

Automatic self-testing:

Know your AED is ready to go straight away with automatic self-testing. The Zoll AED will run a self-diagnosis and notify the user of any pressing issues that would hamper its life-saving functions. This feature makes maintenance a breeze and helps ensure readiness.

Soft carry case:

Though the Zoll Plus Defibrillator is already resistant to water and dust, having an extra layer of protection never hurts. Included with your AED device is a convenient carrying case for easy travel and further protection against the elements. It comes clearly marked so that it can still be identified in an emergency.

Benefits of the Zoll AED Plus

Increased Survival Rates: Zoll’s AED Plus is known for its high success rates in restoring normal heart rhythms.

User Confidence: Voice prompts and feedback help rescuers perform CPR and operate the device confidently.

Minimal Training: Its simplicity makes it suitable for non-medical personnel, allowing bystanders to act swiftly.

Low Maintenance: Periodic checks and easy maintenance contribute to its long-term cost-effectiveness.

AED Plus Batteries

The AED Plus Defibrillator uses lithium batteries. The AED Plus’s battery life is up to five years if left in standby mode.

AED Plus Accessories

Check out:
Trainer for the Zoll AED Plus to learn how to use the defibrillator.
Simulator/Tester for the Zoll AED connects to the AED Plus to demonstrate operation.
Wall Mount Cabinet (Alarmed) for the AED Plus
See our full line of professional defibrillators and Zoll accessories.

Specifications

Defibrillator
Protocol: Semi-automatic and Fully Automatic configuration
Waveform: ZOLL Rectilinear Biphasic
Defibrillator Charge Hold Time: 30 seconds
Energy Selection: Automatic preprogrammed selection (120J, 150J, 200J)
Patient Safety: All patient connections are electrically isolated
Charge Time: Less than 10 seconds with new batteries
Electrodes: ZOLL CPR-D-padz, Pedi-padz® II or Stat-padz® II
Self-test: Configurable automatic self-test from 1 to 7 days. Default = every seven days. Monthly full-energy test (200J).
Automatic self-test Checks: Battery capacity, electrode connection, electrocardiogram and charge/discharge circuits, microprocessor hardware and software, CPR circuitry and CPR-D sensor, and audio circuitry
CPR: Metronome Rate: Variable 60 to 100 CPM
Depth: 3/4″ to 3.5″; 1.9 to 8.9 cm
Defibrillation Advisory: Evaluate electrode connection and patient ECG to determine if defibrillation is required
Shockable Rhythms: Ventricular fibrillation with
average amplitude >100 microvolts and wide complex
ventricular tachycardia with rates greater than 150 BPM for
adults, 200 BPM for pediatrics. For the ECG Analysis Algorithm
sensitivity and specificity, refer to the AED Plus Administrator’s Guide.
Patient Impedance Measurement Range: 0 to 300 ohms
Defibrillator: Protected ECG circuitry
Display Format: Optional LCD with moving bar
Size: 2.6″ x 1.3″; 6.6 cm x 3.3 cm
Optional ECG Viewing Window: 2.6 seconds
Optional ECG Display Sweep Speed: 25 mm/sec; 1″/sec
Battery Capacity: Typical new (20°C) = five years (225 shocks) or 13 hours of continuous monitoring. End of life designated by Red X (typical remaining shocks = 9).
Data Recording and Storage: Seven hours of ECG and CPR data. If the audio recording option is ordered and enabled, it can store 20 minutes of audio recording, ECG, and CPR data.
PC Minimum Requirements for Configuration and Patient Data Recovery (not compatible with Mac OS): Windows XP, Windows 7, Windows 8, Windows 10, IBM- compatible PII with 16550 UART (or higher) computer. 64MB RAM. VGA monitor or better. CD-ROM drive. IrDA port. 2MB disk space.
Device
Size: (H x W x D) 5.25″x 9.50″ x 11.50″; 13.3 cm x 24.1 cm x 29.2 cm
Weight: 6.7 lbs; 3.1 kg
Power: User-replaceable batteries. 10 Type 123A Photo Flash lithium manganese dioxide batteries
Device Classification: Class III and internally powered per EN60601-1
Design Standards: Meets applicable requirements of UL 2601, AAMI DF-39, IEC 601-2-4, EN60601-1, IEC60601-1-2
Environmental Operating Temperature: 32° to 122°F; 0° to 50°C
Storage Temperature: -22° to 140°F; -30° to 60°C
Humidity: 10 to 95% relative humidity, non-condensing
Vibration: MIL Std. 810F, Min.
Helicopter Test Shock: IEC 68-2-27; 100G
Altitude: -300 to 15,000 ft.; -91 m to 4,573 m
Particle and Water Ingress: IP-55
CPR-D-padz
Shelf Life: 5 years
Conductive Gel: Polymer Hydrogel
Conductive Element: Tin
Packaging: Multilayer foil laminate pouch
Impedance Class: Low
Cable Length: 48 in (1.2 m)
Sternum: Length: 6.1 in (15.5 cm); Width: 5.0 in (12.7 cm); Length, conductive gel: 3.5 in (8.9 cm); Width, conductive gel: 3.5 in (8.9 cm); Area, conductive gel: 12.3 sq in (79.0 sq cm)
Apex: Length: 6.1 in (15.5 cm); Width: 5.6 in (14.1 cm); Length, conductive gel: 3.5 in (8.9 cm); Width, conductive gel: 3.5 in (8.9 cm); Area, conductive gel: 12.3 sq in (79.0 sq cm)
Complete Assembly: Folded length: 7.6 in (19.4 cm); Folded width: 7.0 in (17.8 cm); Folded height: 1.5 in (3.8 cm)
Design Standards: Meets applicable requirements of ANSI/AAMI/ISO DF-39-1993

MME Support & Options

Learn about our 30-Day Money Back Guarantee!

If you are unhappy with your purchase of the Zoll AED Plus, Master Medical Equipment offers a refund if you return your AED within 30 days of the original date of sale. To receive a full refund, products must be returned within two weeks of RMA issuance in the same condition as when they departed the MME warehouse. Upon receipt at MME, an inspection is performed to determine if the products have been damaged or misused. MME reserves the right to charge a restocking fee if we find evidence of damage or misuse.

MME does not accept returns on non-stock items, special order items, or disposable products that have been opened or used.

New products must be returned in original packaging to receive the total refund value. MME will not provide refunds on new products that were opened or used by the customer.
Repairs

Contact our authorized service partner, ReNew Biomedical for information on Zoll AED Plus service or on-site maintenance. Give them a call at 866-257-3565.
Financing and Rentals

Are you interested in renting or financing the Zoll AED Plus? Contact our Rental team today!

Semi-Auto Alternate Part Numbers:

20100000101011000, 21000810102011010, 21300800313011010, 21400010102011010, 21400010302011010, 22200010102011010, 22700010102011010, 22800810102011010, 22900000102011010, 23800010102011010, 23800810102011010, 23900010102011010, 8000-004000-01, 8000-004003-01, 8000-004004-01, 8000-004015-01

Auto Alternate Part Numbers:

8000-004010-01, 22900700702011010, 8000-004011-01, 21400710702011010
