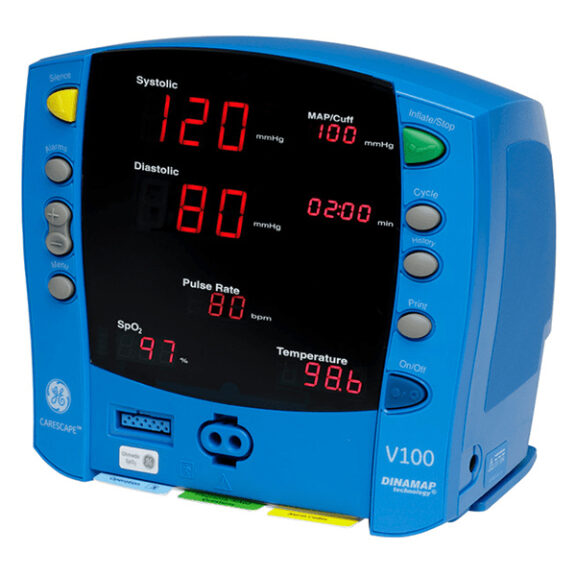

Carescape V100 Vital Signs Monitor Dinamap Nellcor – GE Healthcare – Recertified

The Recertified GE Dinamap Carescape V100 Vital Signs Monitor can go with you from one patient to the next, enabling you to capture vital signs on all your patients using a single, mobile vital signs monitor. With speed, accuracy, and connectivity, the Carescape V100 helps you manage clinical logistics by collecting the correct information at the point of care and presenting it wherever needed. So you can make fast, quality care decisions informed by relevant, current clinical intelligence.

By combining fast determination times with an advanced algorithm, the GE CARESCAPE V100 monitor helps ensure patient comfort while maintaining a high standard of clinical accuracy. It also includes the same advanced parameters and algorithms as other higher acuity GE monitors, ensuring measurement consistency across all care areas.

Recertified GE Dinamap Carescape V100 Vital Signs Monitor Features

Rapid Non-Invasive Blood Pressure Readings

With non-invasive blood pressure determination times as fast as 14 seconds and the clinical accuracy of embedded GE DINAMAP technology, the CARESCAPE V100 monitor delivers the speed and accuracy you expect. Everyday tasks require only one step, making it fast and easy to use.

Mobility and Reliability

In the general medical/surgical unit, you periodically check patients’ vital signs to monitor their status before and after treatment. A quick, reliable, easy-to-use vital signs monitor is essential in efficiently helping you care for many patients. The CARESCAPE V100 monitor can go with you from one patient to the next, enabling you to capture your patients’ vital signs.

Built Tough

Clinical environments can be hard on delicate equipment. Thankfully, GE specifically engineered this unit to run cool, so it does not require cooling fans. And since it has an IPX1 water penetration rating, it withstands drips, leaks, spills, and the rigors of rugged clinical use and cleaning.

Long Battery Life

The CARESCAPE V100 monitor battery has a long run time of up to 11 hours before recharge. This extended battery life allows the flexibility to move the monitor from one patient room to the next for an entire shift.

Exceptional Temperature Technology

Body temperature is one of the most basic indicators of a patient’s
health. A fast, accurate thermometer is essential for capturing this
critical reading. The CARESCAPE V100 monitor offers three temperature options: the Exergen® TemporalScanner™ thermometer.

Many Options for Connectivity

The CARESCAPE V100 monitor can connect using various devices using simple accessories such as a USB or RS-232 cable. The CARESCAPE V100 monitor integrates with a PC or other third-party connectivity solutions such as Capsule® Technologie and Cerner by using these accessories.® Additionally, GE may provide software development kits to assist in developing clinical data capture applications.

A Workstation Designed for the Way You Work

The needs of clinicians were the driving force behind the design of the DINAMAP Mobility Workstation roll stand. Features include:

• Recessed work surface tray
• Large handles with cord wrap features
• Open accessory bin
• Holder for wipes canister
• Clamps to secure sensor cables
• Locking wheels

This GE Dinamap Carescape V100 Vital Signs Monitor unit features:

• GE DINAMAP® SuperSTAT™ (with intra-arterial reference) or classic (with auscultatory reference) blood pressure algorithms support speed, comfort, and artifact rejection.
• Alaris® Turbo Temp® thermometry, featuring oral temperature determinations in about seven seconds.
• Choose from three SpO2 measurements including TruSignal,™ Nellcor® OxiMax® or Masimo SET®

Recertified GE Dinamap Carescape V100 Vital Signs Monitor Specifications

Portability: Carried by a recessed handle or on a roll stand
Printer type: Thermal dot array
Resolution: 384 dots/inch horizontal
Paper type: Choose paper compatible with GE PN 770137
Languages printed: English, German, French, Italian, Spanish, Portuguese, Hungarian, Polish, Czech, Finnish, Swedish, Danish, Dutch, Norwegian, and Slovak
Temperature options: Exergen TemporalScanner temporal artery thermometer; Alaris Turbo Temp thermometer; Alaris Tri-site thermometer

Non-Invasive Blood Pressure Specifications

Cuff pressure range (Normal operating range): 0 to 290 mmHg (adult/ped); 0 to 145 mmHg (neonate)
Blood pressure accuracy

• SuperSTAT: Mean error ≤5 mmHg
• NIBP algorithm: Standard deviation ≤8 mmHg (Meets ANSI/AAMI Standard SP10:1992)
• Classic and auscultatory: Mean error ≤5 mmHg, standard deviation ≤8 mmHg (Meets ANSI/AAMI Standard SP10:2002)
• Maximum determination time: 120 s (adult/ped); 85 s (neonate)
• Overpressure cutoff: 300 to 330 mmHg (adult/ped); 150 to 165 mmHg (neonate)

Blood pressure range

• SuperSTAT NIBP Algorithm: Systolic – 30 to 290 mmHg (adult/ped), 30 to 140 mmHg (neonate; MAP – 20 to 260 mmHg (adult/ped), 20 to 125 mmHg (neonate); Diastolic – 10 to 220 mmHg (adult/ped), 10 to 110 mmHg (neonate)
• Classic and auscultatory: Systolic – 30 to 245 mmHg (adult/ped), 40 to 140 mmHg (neonate); MAP – 15 to 215 mmHg (adult/ped), 30 to 115 mmHg (neonate); Diastolic – 10 to 195 mmHg (adult/ped), 20 to 100 mmHg (neonate)

Pulse rate range

• SuperSTAT: 30 to 240 beats/min (adult/ped)
• NIBP algorithm: 30 to 240 beats/min (neonate)
• Classic and auscultatory: 30 to 200 beats/min (adult/ped), 30 to 220 beats/min (neonate)
• Pulse rate accuracy: ± 3.5% or 3 bpm, whichever is greater

Power Specifications

Universal power converter: P/N 2018859-001
AC input voltage: 100 to 250VAC, 12VA
DC output voltage: 12VDC at 1A (The AC mains power adapter
contains a non-resettable and non-replaceable fuse.)
Protection against electrical shock: Internally powered or Class II
when powered from a specified external power supply
DC input voltage: 12 VDC, supplied from a source conforming to IEC 60601-1.
Fuses: The monitor contains three fuses mounted within. The fuses protect the low-voltage DC input, the battery, and the remote alarm
output. The internal supply regulates the +5 V output on the host port connector by internal supply.
Battery Type: Sealed lead acid, 6V, 3.3 Ahr
Battery life: 5 hours with NIBP every 5 minutes and SpO2, temperature, and printer active; 11.5 hours non-SpO2 versions with a usage scenario of NIBP determinations every 15 minutes without temperature active.
Battery Charge time: Approximately 5 hours from full discharge when the monitor is off. Approximately 8 hours when the monitor is on.

Environmental Specifications

Operating Temperature: 5° to 40°C (41° to 104°F)
Operating Atmospheric Pressure: 500 hPa to 1060 hPa
Storage temperature: –20° to 50°C (– 4° to 122°F)
Storage Atmospheric pressure: 500 to 1060 hPa
Humidity range: 5 to 95% non-condensing
Radio frequency: Complies with IEC 60601-1-2. Medical Electrical Equipment, Electromagnetic Compatibility Requirements and Tests, and CISPR 11 (Class B, Group 1) for radiated and conducted emissions

Recertified Carescape V100 Vital Signs Monitor Physical Specifications

Dimensions: (H x W x D) 19.5 x 21.9 x 13.5 cm (7.7 x 8.6 x 5.3 in); 19.5 x 25.4 x 13.5 cm (7.7 x 10 x 5.3 in) with Alaris temperature option
Weight: 2.4 kg (5.4 lb) including battery
Mountings: Self-supporting on rubber feet, pole-mounted, or wall-mount bracket

Nellcor OxiMax specifications (Optional Accessories)

Measurement range

• SpO2: 1 to 100%
• Pulse rate: 20 to 250 bpm
• Perfusion range: 0.03 to 20%

Accuracy

• Adult: 70 to 100% ±2 digits
• Neonate: 70 to 100% ±3 digits
• Low perfusion: 70 to 100% ±2 digits

Pulse rate

• Adult and neonate: 20 to 250 bpm ±3 digits
• Low perfusion: 15 20 to 250 bpm ±3 digits

Roll Stand Specifications (Optional Accessory)

Height to mounting platform: 100 cm (39 in) from floor to lowest position; 125 cm (49 in) from floor to highest position
Base Diameter: 48 cm (19 in); 5 – 7.6 cm (3 in) casters—all non-locking
Basket (H x W x D): 14.6 x 26.3 x 16.8 cm (5.75 x 10.375 x 6.625 in)
Weight: 11 kg (24 lb)

MME Support & Options

Learn about our 30-Day Money Back Guarantee!

Suppose you are unhappy with purchasing the Recertified Carefusion V100 Vital Signs Monitor. In that case, Master Medical Equipment will offer a refund if you return your monitor within 30 days of the original date of sale.

To receive a full refund, products must be returned within two weeks of RMA issuance in the same condition as when they departed the MME warehouse. Upon receipt at MME, an inspection is performed to determine if the products have been damaged or misused. MME reserves the right to charge a restocking fee if we find evidence of damage or misuse.

MME does not accept returns on non-stock items, special order items, or disposable products that have been opened or used.

New products must be returned in original packaging to receive the total refund value. MME will not provide refunds on new products that were opened or used by the customer.

Suppose the return is due to a failure on MME’s part, such as the shipped item not matching the ordered item. In that case, we will not apply a restocking fee and grant a full refund.

Repairs for the Recertified GE Dinamap Carescape V100 Vital Signs Monitor

MME offers regular service, scheduled maintenance, and PMs on this unit through our partnership with ReNew Biomedical. ReNew, an ISO 13485:2016 Certified company, provides quality and cost-effective repairs and service with their AAMI CABT and CBET-certified biomedical techs. In addition, they offer on-site service and basic repairs. ReNew offers service, repair, and preventative maintenance contracts for the V100. Give them a call at 866-257-3565.

A Service Contract Covers:

• Annual Preventative Maintenance (PM)
• Full coverage on all parts and labor for repairs/maintenance
• Full Biomed report with every service, repair or PM
• Rental unit for each unit sent in for service, repair or PM
• Telephone Support
• Complimentary cleaning of each unit upon return
• Free return shipping on all service, repairs or PMs

Preventative Maintenance (PM) Covers:

• Diagnostic check of device’s CPU
• Test power supply and all parameters (if applicable)
• Test system’s internal clock
• Operational check of all system functions per OEM specifications
• Full Biomed report with every PM
• Telephone support
• Complimentary cleaning of each unit upon return
• Free return shipping on all PMs

Financing and Rentals

Need the GE Dinamap Carescape V100 Vital Signs Monitor, but only for a short time? Our partner company, JEM Rentals and Financing, offers rentals and financing for those who need flexible payment options or short-term equipment rentals. Call them at 833-791-2551 or visit jemfinancing.com.
