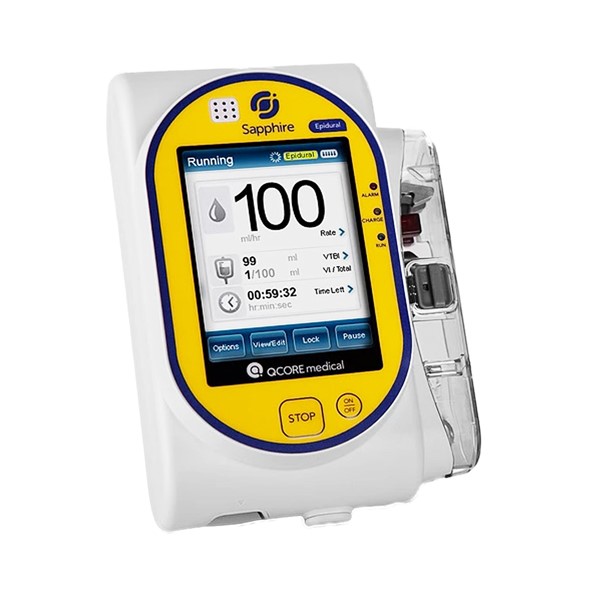

Sapphire Infusion Pump Epidural 17000-031-0035 – Eitan – New
$3,100.00
The Sapphire Epidural Infusion Pump is a dedicated, color-coded pain management system for epidural infusions. Specifically designed to accommodate with the needs and limitations of Epidural infusion the Sapphire Epidural provides the complete solution for Epidural delivery.
What's Included:
- One (1) Q Core Medical Sapphire Infusion Pump
- One (1) Q Core Medical Sapphire Infusion Pump Mini Cradle – 15042-000-0010
- One (1) Q Core Medical Sapphire Infusion Pump AC Power Cord – 15070-112-0005
- One (1) Bolus handle - 15071-00-0005
Want to learn more about this product? read the long description below.
This item is currently unavailable, but could be shipped within 7 Days. Please call for more info or to place an order.
Description
One of the newest infusion pumps on the market, The Sapphire Epidural Infusion Pump has a dedicated epidural mode to be the complete solution for epidural delivery.
- Compact, lightweight device that is intuitive and easy to use
- Consistent accuracy with robust performance
- Single solution fits all, for any infusion need
- Software-driven and built-in adaptability
The following accessories are included with the purchase of the Q Core Medical Sapphire Infusion Pump:
- One (1) Q Core Medical Sapphire Infusion Pump
- One (1) Q Core Medical Sapphire Infusion Pump Mini Cradle – 15042-000-0010
- One (1) Q Core Medical Sapphire Infusion Pump AC Power Cord – 15070-112-0005
MME offers cases of the infusion sets for the Q Core Medical Sapphire Infusion Pump at the links below.
- Q Core Medical Sapphire Infusion Pump Primary Infusion Set – 12000-000-0044
- Q Core Medical Sapphire Infusion Pump Primary Infusion Set – 12005-000-0003
Additionally, the following accessories are available for purchase with the Sapphire Epidural Infusion Pump:
- Q Core Medical Sapphire Infusion Pump Communication Cable – 05020-110-0213
- Q Core Medical Sapphire Infusion Pump Travel Case – 15020-010-0002
- Q Core Medical Sapphire Infusion Pump Mini Cradle w/ Splitter – 17000-026-0007
- Q Core Medical Sapphire Infusion Pump USB to 4-Port RS232 Adapter – 15077-000-0001
- Q Core Medical Sapphire Infusion Pump External Battery – 15079-111-0001
- Q Core Medical Sapphire Infusion Pump Internal Battery – 050220-160-0001
EPIDURAL KEY SPECIFICATIONS
| Dimensions | 143 x 96 x 49 mm(5.63 x 3.78 x 1.93 in.) (H x W x D) |
| Weight(excluding battery) | 418 g (14.7 oz.) |
| Infusion device | Volumetric, peristaltic |
| Pumping mechanism | Single-channel volumetric, with integral pressure sensor |
| Infusion delivery modes | PCEA – Patient Controlled Epirdual Anelgasia & Epidural Intermittent |
| KVO rate | Up to 20 mL/h in increments of 0.1 mL/h |
| Accuracy | ±2.5% under normal conditions (per IEC60601-2-24 standard) |
| Battery | Rechargeable Li-Ion battery 7.4V, 1960 mA/h, 24 hrs @ 125 mL/h (with a fully charged battery and backlight Off)
Recharge time: up to 6 hrs (when pump is not in operation) |
| Flow rate | 0.1 – 99.9 mL/h in increments of 0.1 mL/h
100 – 999 mL/h in increments of 1 mL/h |
| Volume (VTBI) | 0.1 – 9999 mL in increments of 0.1 mL |
| External power supply | 100-240V 50-60 Hz, 0.6A |
| Downstream occlusion | Up to 1.2 Bar (17.4 PSI or 900 mmHg) |
| Air in line sensor | A sensor detects single and accumulated bubbles of selectable sizes varying from 0.02 mL – 0.5 mL |
| Operating temperature | +5° (41ºF) to 40°C (104ºF) |
| Water ingress and dust protection | IP24 according to IEC 60601-1-11 |
| Prime | Manual or automatic priming (600 mL/h, or from air in line alarm 900 mL/h) |
Have a question about this device? Master Medical Equipment’s friendly and knowledgeable representatives are here to help you find the solution that will fit your needs. We also recommend ReNew Biomedical if there is a problem with your device. ReNew Biomedical is an ISO 13485:2016 Certified company, so you can trust the team to give you the best service possible and as efficiently as possible.
ReNew Biomedical’s goal is to save you time and money and our certified biomedical service guarantees your equipment will perform when it matters most. All of your equipment will be serviced by our military trained and certified biomedical staff. For questions, give the team a call at 866-955-3052 or email them at service@renewbiomedical.com today!
More Info
| Weight | 0.92 lbs |
|---|---|
| Dimensions | 1.93 × 3.78 × 5.63 in |
| Condition |
