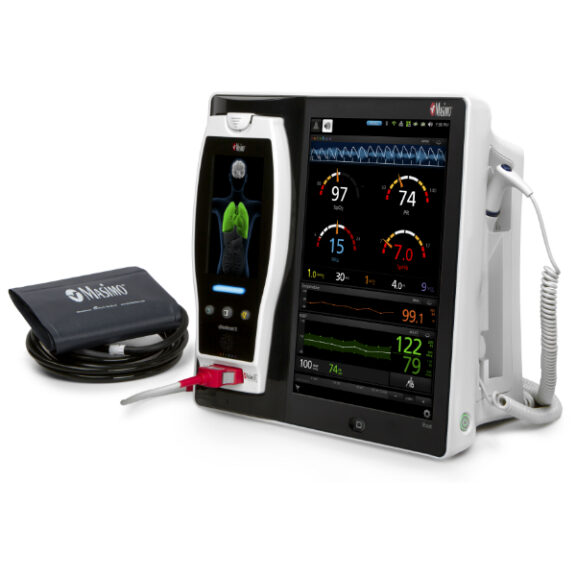

Root Patient Monitor - Masimo - Factory Refurbished

Root Patient Monitor – Masimo – Factory Refurbished

SKU: MAS9695-R

Call For Quote

The Masimo Root Patient Monitor w/ NIBP offers multiple high-impact innovations for broad application across the continuum of care.

Features and Benefits

Integrates Masimo’s breakthrough measurements from the Radical-7® handheld or Radius-7® patient-worn monitor
Instantly interpretable, high visibility display with intuitive, touchscreen navigation for easy and adaptable use in many environments
Integrated noninvasive blood pressure and temperature monitoring
Flexible measurement expansion through Masimo Open Connect
- Optional ISA™ CO2 capnography for sidestream monitoring featuring Nomoline™ technology for extended monitoring and cost-effective consumables
- Designed to enable third-party MOC-9 measurement expansion
USB, WiFi and Bluetooth connectivity included

Materials Included

Masimo Root Vital Signs Monitor w/ MOC-9
(1) Non Invasive Blood Pressure Tube
(1) Adult Blood Pressure Cuff
(1) Radical 7 Color Device
(1) Adult Reusable SpO2 Finger Sensor
(1) Welch Allyn SureTemp Thermometer
(1) RC-4 M-LNCS Patient Cable
(1) Power Cord

Want to learn more about this product? read the long description below.

For Warranty information on new and recertified products, please see our Warranty page here.

Services

If you are eligible for exemption from sales tax, please call or email us to place your order. All orders completed online will have applicable sales tax added.

Description

Masimo Root Patient Monitor w/ NIBP Technical Specifications

Masimo Root Patient Monitor Root Specifications

Mesurement Accuracy
- NIBP
  - Between 0 mmhg and 300 mmHg: ±3 mmHg
- Temperature
  - Between 80° F and 110° F (26.7° C and 43.3° C)
Display Ranges
- NIBP (Adult, Pediatric, Neonatal)
  - Systolic: 40–260 mmHg, 40–230 mmHg, 40–130 mmHg
  - Diastolic: 20–200 mmHg, 20–160 mmHg, 20–100 mmHg
  - MAP: 26–220 mmHg, 26–183 mmHg, 26–110 mmHg
- Temperature
  - Temperature: 80-110° F (26.7-43.3° C)
Electrical
- Root AC Power Requirements: 100-240 VAC, 47-63 Hz
- Power Consumption: 180 VA (Max)
- Fuses Each With: 2 Amp, Fast Acting, Metric, (5×20 mm), 250 V
Battery
- Type: 10.8 V Lithium Ion (Nominal)
- Capacity: 4 Hours
- Maximum Charging Time: 4 Hours
Environmental
- Operating Temperature: 50º–104º F (10º–40º C)
- Transport/Storage Temperature: -4º–122º F (-20º–50º C)
- Operating Humidity: 15–95%, Non-Condensing
- Storage Humidity: 15–95%, Non-Condensing
- Operating Altitude: 500 mbar to 1060 mbar; -1,000–18,000 ft (-304–5486 m)
Physical Characteristics
- Weight: 7.42 lbs (3.37 kg)
- Dimensions: 11″ x 10.5″ x 5.5″
Display
- Type: Backlit Active Matrix TFT LCD
- Resolution: 1280 pixels x 800 pixels
- Color: 24-bit RGB
- Size: 10.1 in Diagonal
Touchscreen
- Type: Multi-Touch P-Cap
Connections
- Connector/Type (Number of Ports)
  - Ethernet: 10/100 MBps (1)
  - Nurse Call:1/4 -in Round Female (1)
  - MOC-9: Masimo Connector (3)
  - Iris: RJ-45 (4)
  - USB: USB 2.0 Type A (2)
  - NIBP: Male Quick Connect (1)
  - Temperature: Probe Connector (1)

Radical 7 Specifications

Measurement Range
- SpO2: 0 – 100%
Oxygen saturation accuracy (%SpO2)
- Saturation: 60 – 80%
  - No Motion
    - Adults/Infants/Pediatrics: + 3%
- Saturation: 70 – 100%
  - No Motion
    - Adults/Infants/Pediatrics: + 2%
    - Neonates:+ 3%
- Motion
  - Adults/Infants/Pediatrics/Neonates: + 3%
- Low Perfusion
  - Adults/Infants/Pediatrics/Neonates:+ 2%

Resolution
- Oxyhemoglobin Saturation (%SpO2): 1%
- Pulse Rate (bpm): 1 bpm
- Respiration Rate (RRa): 1 breath per minute
Electrical Standalone
- AC power requirements: 100 – 240 VAC, 47 – 63 Hz
- Power consumption: 55 VA
- Fuses: 1 Amp, Fast Acting, Metric, (5x20mm), 250V
Batteries
- Type: NiMH
- Capacity (battery life): 4 hours
- Charging time: 3 hours
Environmental
- Operating Temperature: 41°F to 104°F (5°C to 40°C)
- Storage Temperature: -40°F to 158°F (-40°C to + 70°C)
- Operating humidity: 5% to 95%, noncondensing
- Operating altitude: 500 mbar to 1060 mbar pressure; -1000 ft to 18,000 ft (-304 m to 5,486 m)
Physical Characteristics
- Dimensions: 8.9” x 3.5” x 2.1” (22.6 cm x 8.9 cm x 5.3 cm)
Weight: 1.2 lbs

SpO2 Modes
- Averaging Mode: 2, 4, 8, 10, 12, 14, or 16 seconds
- Sensitivity: Normal, APOD, and Maximum

Alarms
- Audible and visual alarms for high low saturation and pulse rate (SpO2 range 1-99%, pulse rate range 30-235 BPM)
Display/Indications
- Data display: %SpO2, pulse rate, alarm status, trends, status messages,
- Display Color: Multi-color or monochrome blue
- Type: TFT Color LCD
- Pixels: 480 x 272 dots
- Dot Pitch: 0.20 mm
