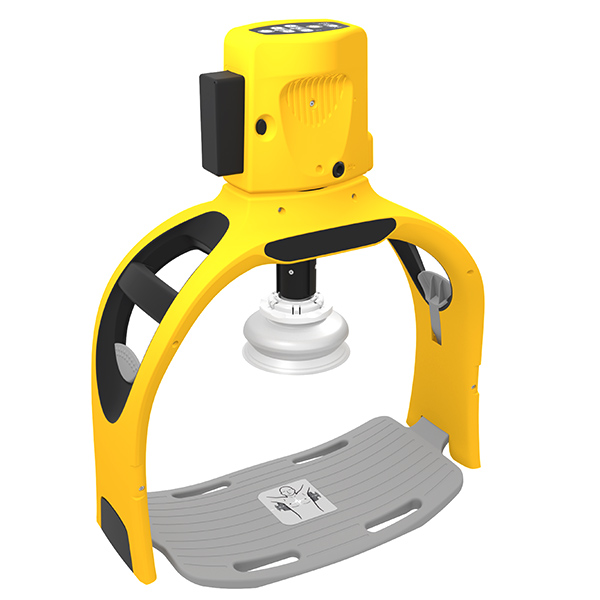

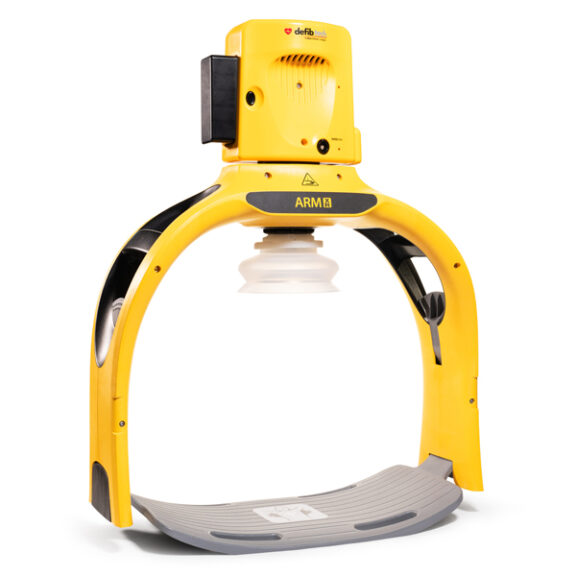

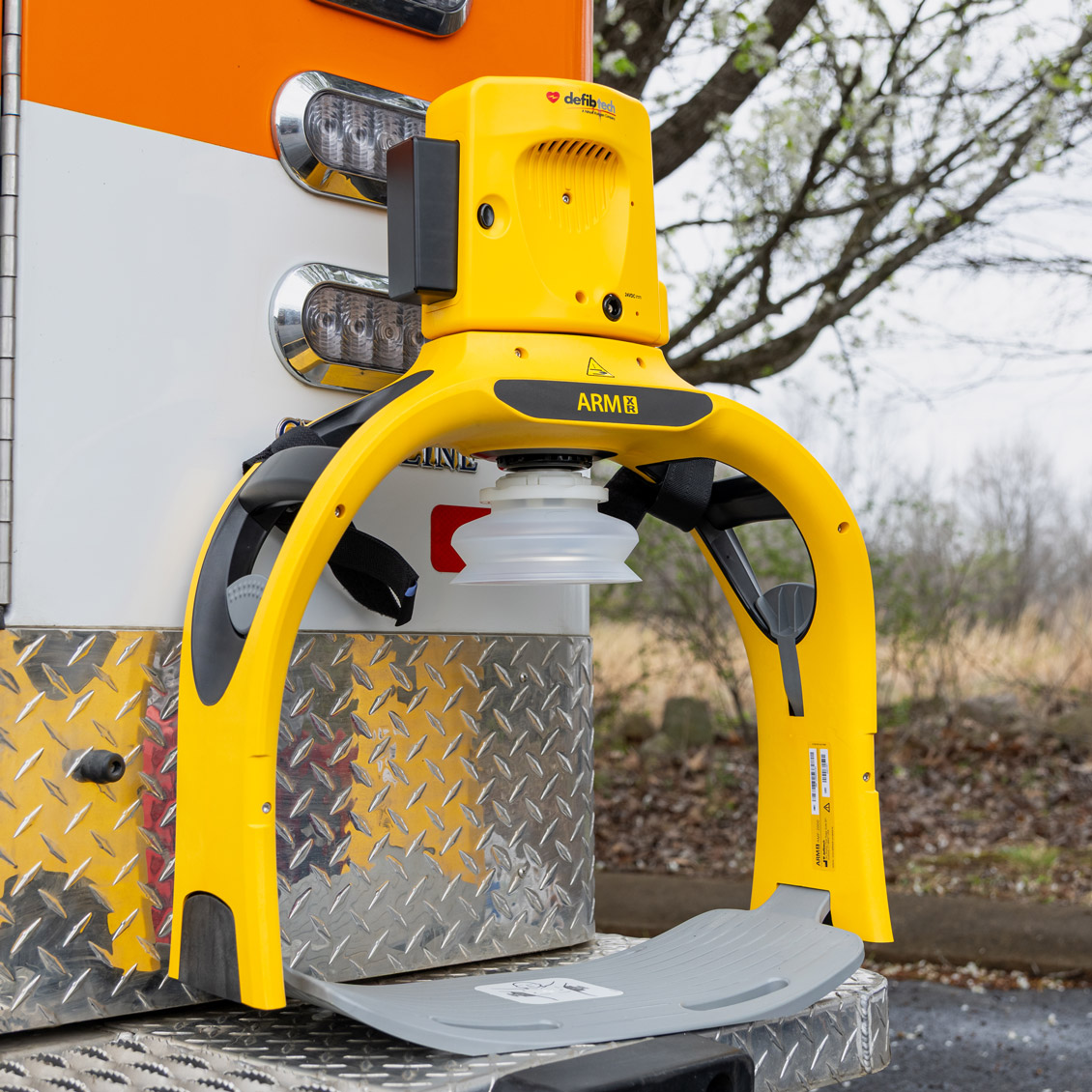

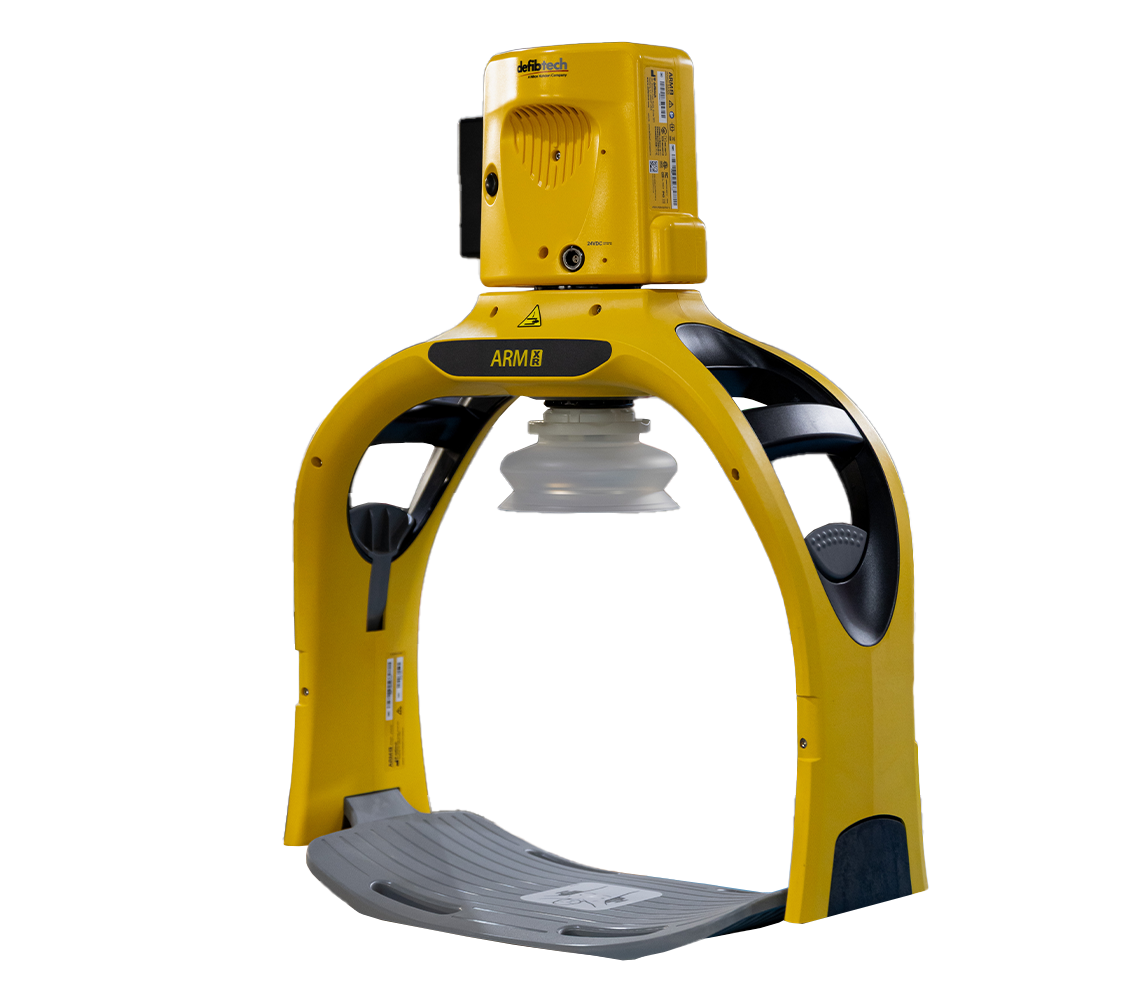

Lifeline ARM XR ACC RCF-A2000EN – Defibtech – New
$14,999.00
Automated chest compression device for EMS

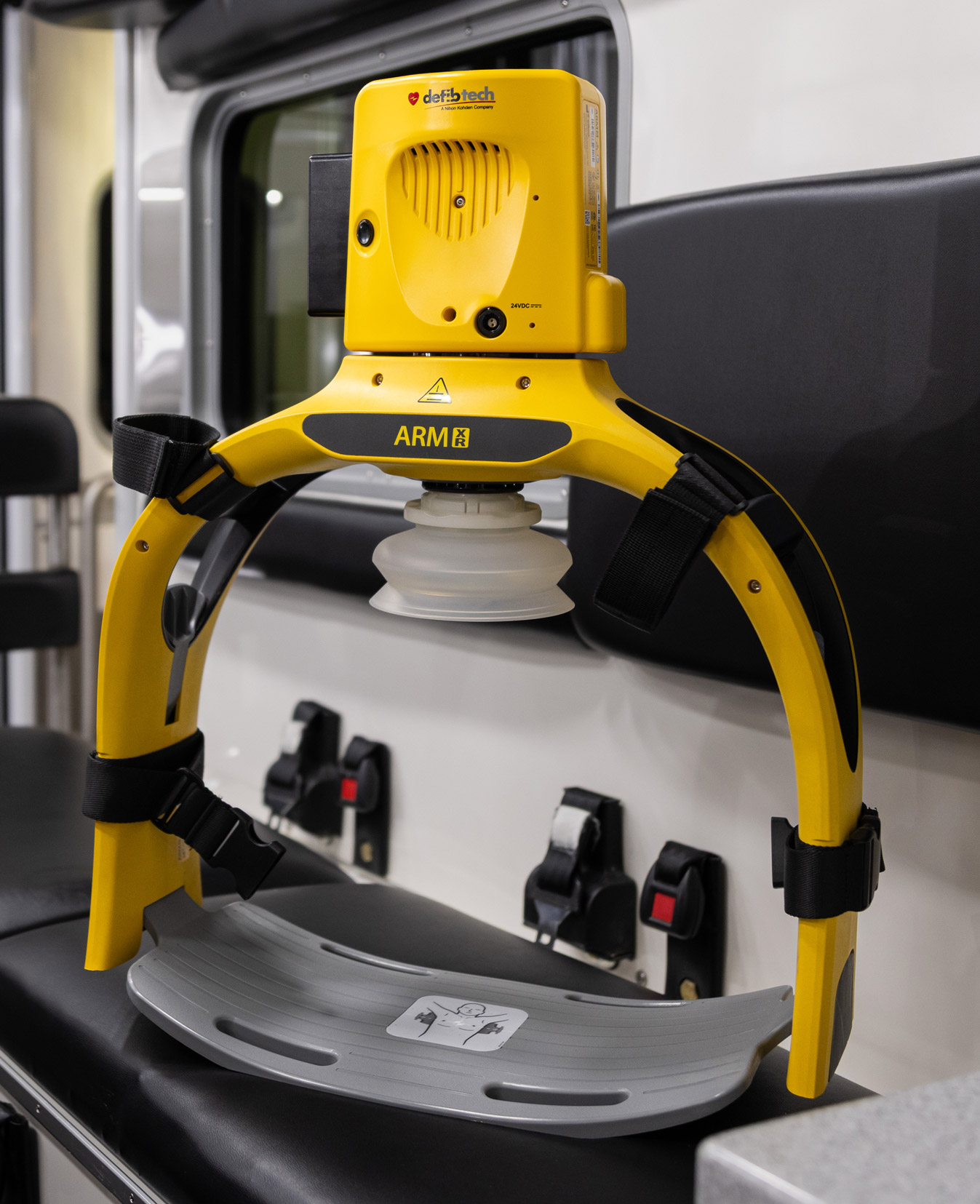

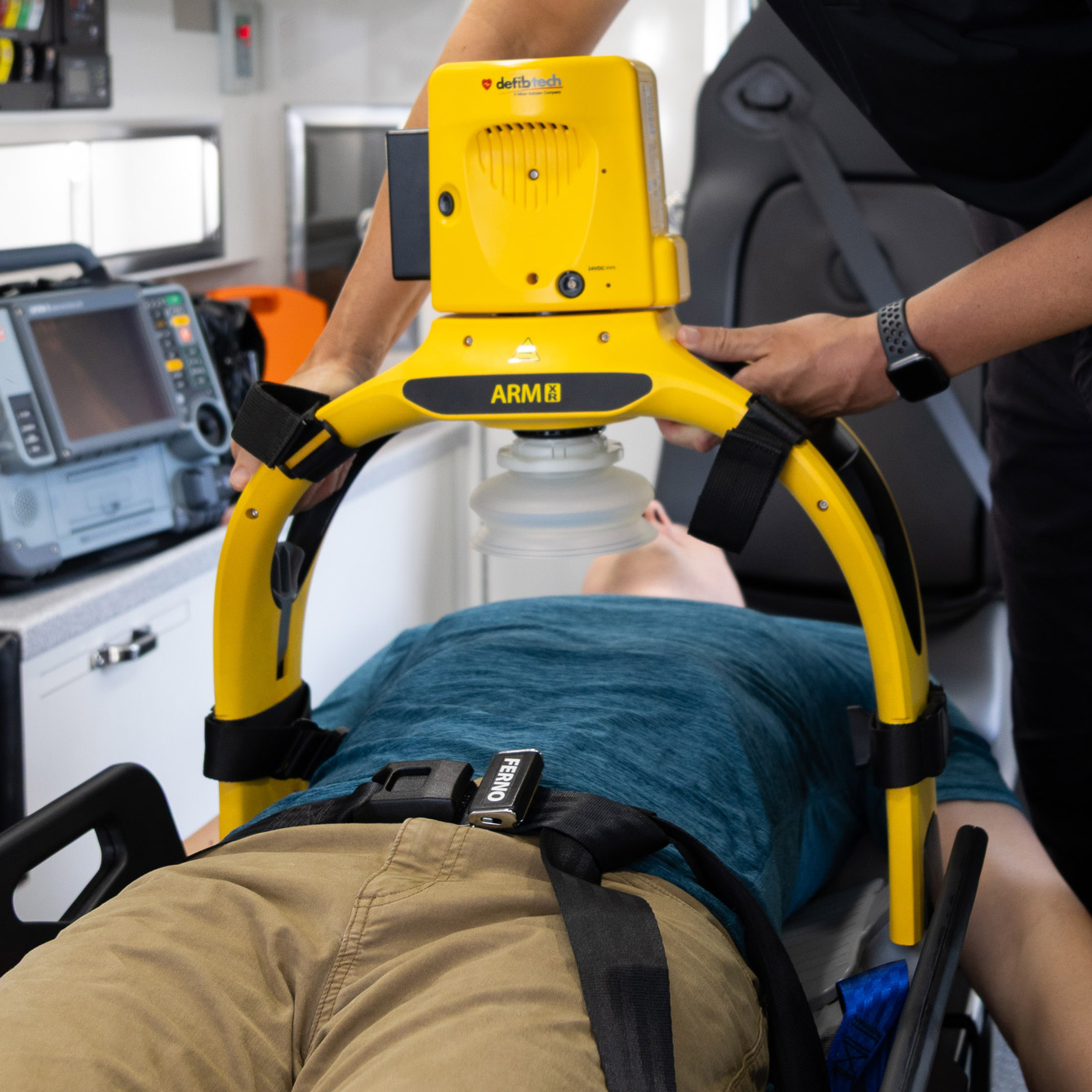

The newest addition to the Defibtech product family is the ARM XR automated chest compression (ACC) device designed for professional rescuers. ARM XR ACC helps emergency personnel deliver continuous, high-quality CPR for patients in cardiac arrest. Easy to deploy and use, ARM XR allows first responders to transition from manual to mechanical CPR in seconds, and maintain continuous compressions over long durations. Count on ARM XR to deliver consistent, high-quality CPR from the rig to the hospital.
With ARM XR, EMS teams can:
- Provide high-quality CPR with appropriate compressions per minute, depth of compressions and active chest recoil
- Run a cardiac arrest code with smaller teams and reduced fatigue/stress
- Treat large and small patients with automated compression depth adjustment
- Extend budgets with this cost-effective, rugged mechanical CPR system
Please call one of our friendly and knowledgeable customer service reps for more information!
Want to learn more about this product? read the long description below.
This item is currently unavailable, but could be shipped within 4+ weeks. Please call for more info or to place an order.
Description
Active Chest Recoil
Defibtech’s suction cup piston design generates consistent compression depth in and out of the hospital setting.
- Consistent resuscitation compressions
- Up to 0.6 in (1.5 cm) of recoil for chest wall expansion
Integrated Frame and Backboard
The integrated backboard and lightweight frame design of the ARM XR allow for consistent compressions on scene and it secures patient arms and device during transport to hospital or cath lab. The frame design also allows you to accommodate a larger patient.
- Faster, smoother patient application
- Easy snap and release functionality
- Portability
- Speedy deployment
33% Longer Battery Life
Unmatched battery life provides uninterrupted compressions for 60 minutes–33% more than competitive devices.
- Runs on battery or AC power
- External AC adapter power module/charger provides external power to run the ARM XR
- Charges the installed battery pack
Treat Large Patients
With ARM XR, you can treat large and small patients as the device automatically adjusts compression depth.
Adult Patients that fit in the ACC:
- Chest Width – 17.5 In (44.4 cm) maximum
- Chest Height – 7.4 to 12.7 In (18.8 to 32.3 cm)
Use of the ARM XR ACC is not restricted by patient weight
Wide Operating Temperature
ARM XR offers a wide operating /maintenance temperature of 0 to 40°C (32 to 104°F).
Lightweight and Portable
Product Size
- Size (Assembled) = 25 x 20 x 9 In / (63.5 x 50.8 x 22.9 cm)
- Size (In Carrying Case) = 21 x 19 x 11 In / (53.3 x 48.3 x 28.0 cm)
Weight (w/ Battery Pack) = 16.4 lbs (7.5 kg)
Extends your Resources
Make the most of your manpower and your budget with ARM XR. Use ARM XR to run a cardiac arrest code with smaller teams while still reducing rescuer fatigue and stress. ARM XR is also very cost-effective.
More Info
Condition |
---|
Specifications
Compressions
Compression Modes
Continuous Mode: Continuous Compressions;
Protocol Mode: 30:2 (30 compressions followed by a 3-second ventilation pause for 2 rescue breaths; audio indication prior to each ventilation pause)
Compression Depth
Available compression depth of 1.5 to 2.4 inches (38 to 60 mm) ±0.1 inches (±2 mm), with a target compression depth of 1.8 to 2.2 inches (46 to 56 mm) determined by anterior posterior diameter of patient chest from piston position.
Compression Frequency: 100 – 110 ±1 compressions per minute
Compression Duty Cycle: 50% ±5%
Pressure Pad Release
To allow for chest rise (e.g. during asynchronous ventilation or spontaneous gasping), the pressure pad moves up to 0.6 inches (1.5 cm) above the start position at every compression.
Physical
Size (assembled): 25 x 20 x 9 inches (63.5 x 50.8 x 22.9 cm)
Size (in carrying case): 21 x 19 x 11 inches (53.3 x 48.3 x 28.0 cm)
Weight (with battery pack): 16.4 lbs (7.5 kg)
Patients Eligible for Treatment
Adult patients that fit into the device:
- Chest width – 17.5 inches (44.4 cm) maximum
- Chest height – 7.4 to 12.7 inches (18.8 to 32.3 cm)
- Use of the RMU-2000 ACC device is not restricted by patient weight
AC Power
Model Number: RPM-2000
Rated Output: 24.0VDC (±5%)
Input Voltage: 100 – 240VAC, 50/60Hz nominal
Input Current: 1.5A
Environmental
Operating / Maintenance Temperature: 0 to 40°C (32 to 104°F)
Standby / Storage / Transport Temperature: -20 to 60°C (-4 to 140°F) The maximum time required for the device to adapt to operating temperature after storage is 2 hours.
Humidity: 5% to 95% (non-condensing)
Sealing / Water Resistance: IEC 60529 class IP43 (battery pack installed)
Device Classification: Internally powered Class II (with external power source)
Meets applicable requirements of:
IEC 60601-1
ANSI/AAMI ES60601-1
CAN/CSA C22.2 60601-1
IEC 60601-1-2
Data Transmission / Radio Module: The device can send device data (e.g. event data and device status) to a host PC wirelessly via a Silicon Labs BT121 Bluetooth® Module or a wired USB connection.
Atmospheric Pressure: 620 – 1060 hPa per IEC 60601-1-12
Electromagnetic Compatibility (Emissions & Immunity)
- IEC 60601-1-2
- AIM 7351731
- EN 55025 / CISPR 25
Battery Pack
Model Number: RBP-1000
Battery Type: 18.0V, 5600mAh, Lithium-ion, Rechargeable, recyclable
Battery Pack Charge Time: Less than 3 hours in ACC, Typical, with new battery at 25°C. Less than 2 hours if charging one battery pack in optional external battery pack charging station (less than 3 hours if charging two battery packs)*
Operation Time: 1 hour (nominal patient), Typical, with new battery at 25°C.
Battery Pack Useful Life: Recommended to replace battery pack every 3 years or if battery pack indicator displays a replace battery pack condition (~300 charge/discharge cycles, One charge / discharge cycle is defined as charging and discharging the full capacity of the battery pack)
Battery Pack Operating Temperature: 0 to 40°C (32 to 104°F) ambient
Charging Temperature: 0 to 40°C (32 to 104°F) ambient
Storage Temperature: 0 to 40°C (32 to 104°F); –20 to 60°C (–4 to 140°F) short-term < 1 month
Sealing / Water Resistance: IEC 60529 class IP44
